Gli spigoli

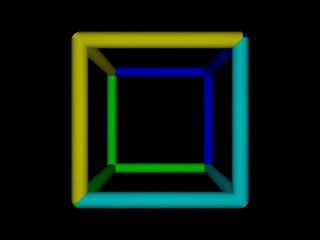

12 cilindri… di 4 colori
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
#include "colors.inc" cylinder{ < 1, 1, 1> < 1, 1,-1>, 0.1 pigment{ color Blue } } cylinder{ < 1, 1, 1> < 1,-1, 1>, 0.1 pigment{ color Blue } } cylinder{ < 1, 1, 1> <-1, 1, 1>, 0.1 pigment{ color Blue } } cylinder{ < 1,-1,-1> < 1, 1,-1>, 0.1 pigment{ color Cyan } } cylinder{ < 1,-1,-1> < 1,-1, 1>, 0.1 pigment{ color Cyan } } cylinder{ < 1,-1,-1> <-1,-1,-1>, 0.1 pigment{ color Cyan } } cylinder{ <-1,-1, 1> <-1, 1, 1>, 0.1 pigment{ color Green } } cylinder{ <-1,-1, 1> < 1,-1, 1>, 0.1 pigment{ color Green } } cylinder{ <-1,-1, 1> <-1,-1,-1>, 0.1 pigment{ color Green } } cylinder{ <-1, 1,-1> < 1, 1,-1>, 0.1 pigment{ color Yellow } } cylinder{ <-1, 1,-1> <-1, 1, 1>, 0.1 pigment{ color Yellow } } cylinder{ <-1, 1,-1> <-1,-1,-1>, 0.1 pigment{ color Yellow } } camera { location<0,0,-4> look_at<0,0,0> } light_source{ <0,0,-4> color White } |
Spigoli e vertici

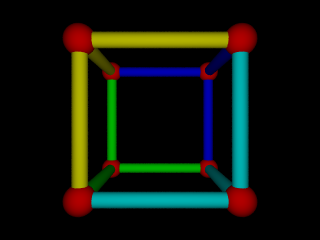

12 cilindri + 8 sfere
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 |
#include "colors.inc" cylinder{ < 1, 1, 1> < 1, 1,-1>, 0.1 pigment{ color Blue } } cylinder{ < 1, 1, 1> < 1,-1, 1>, 0.1 pigment{ color Blue } } cylinder{ < 1, 1, 1> <-1, 1, 1>, 0.1 pigment{ color Blue } } cylinder{ < 1,-1,-1> < 1, 1,-1>, 0.1 pigment{ color Cyan } } cylinder{ < 1,-1,-1> < 1,-1, 1>, 0.1 pigment{ color Cyan } } cylinder{ < 1,-1,-1> <-1,-1,-1>, 0.1 pigment{ color Cyan } } cylinder{ <-1,-1, 1> <-1, 1, 1>, 0.1 pigment{ color Green } } cylinder{ <-1,-1, 1> < 1,-1, 1>, 0.1 pigment{ color Green } } cylinder{ <-1,-1, 1> <-1,-1,-1>, 0.1 pigment{ color Green } } cylinder{ <-1, 1,-1> < 1, 1,-1>, 0.1 pigment{ color Yellow } } cylinder{ <-1, 1,-1> <-1, 1, 1>, 0.1 pigment{ color Yellow } } cylinder{ <-1, 1,-1> <-1,-1,-1>, 0.1 pigment{ color Yellow } } sphere{ < 1, 1, 1> 0.2 pigment{ color Red } } sphere{ < 1, 1,-1> 0.2 pigment{ color Red } } sphere{ < 1,-1, 1> 0.2 pigment{ color Red } } sphere{ < 1,-1,-1> 0.2 pigment{ color Red } } sphere{ <-1, 1, 1> 0.2 pigment{ color Red } } sphere{ <-1, 1,-1> 0.2 pigment{ color Red } } sphere{ <-1,-1, 1> 0.2 pigment{ color Red } } sphere{ <-1,-1,-1> 0.2 pigment{ color Red } } camera { location<0,0,-4> look_at<0,0,0> } light_source{ <0,0,-4> color White } |
Punto di vista

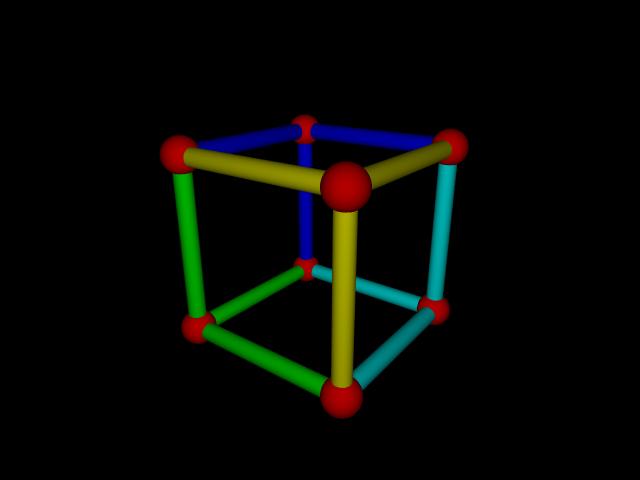

L’osservatore si sposta a sinistra, in alto
|
1 2 3 |
... camera { location<-4,2,-3> look_at<0,0,0> } light_source{ <-4,2,-3> color White } |
Macro
La libreria shapes.inc contiene una macro per un box wireframe.
I parametri specificano i due vertici opposti e il raggio dei cilindri e delle sfere utilizzate.
|
1 2 3 4 5 6 7 |
#include "shapes.inc" #include "colors.inc" object{ Wire_Box_Union(<-1,-1,-1>, <1,1,1>, 0.1) pigment{ color White } } light_source{ <0,0,-4>, color White } camera{ location<0,0,-4> look_at<0,0,0> } |

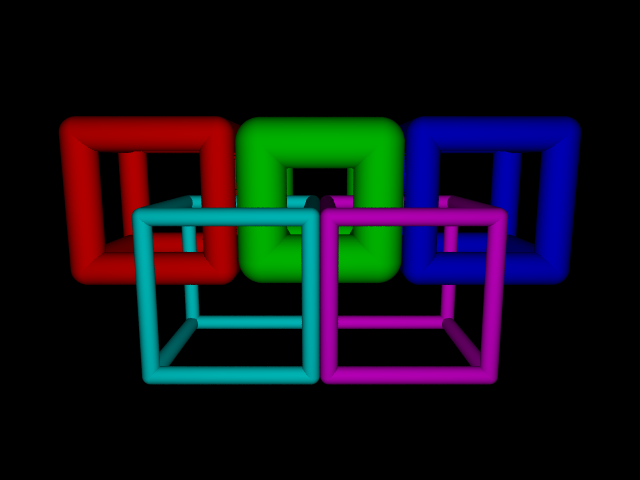

Cubi wireframe
I cubi sono centrati nell’origine e poi traslati.
Il raggio permette di modificare lo spessore dei tubi.
|
1 2 3 4 5 6 7 8 9 10 11 |
#include "shapes.inc" #include "colors.inc" object{ Wire_Box_Union(<-1,-1,-1>, <1,1,1>, 0.2) pigment{ color Red } translate<-2, 0.5,0.5> } object{ Wire_Box_Union(<-1,-1,-1>, <1,1,1>, 0.3) pigment{ color Green } translate< 0, 0.5,0.5> } object{ Wire_Box_Union(<-1,-1,-1>, <1,1,1>, 0.2) pigment{ color Blue } translate<+2, 0.5,0.5> } object{ Wire_Box_Union(<-1,-1,-1>, <1,1,1>, 0.1) pigment{ color Cyan } translate<-1,-0.5,0 > } object{ Wire_Box_Union(<-1,-1,-1>, <1,1,1>, 0.1) pigment{ color Magenta } translate<+1,-0.5,0 > } light_source{ <0,1,-6>, color White } camera{ location<0,1,-6> look_at<0,0,0> } |

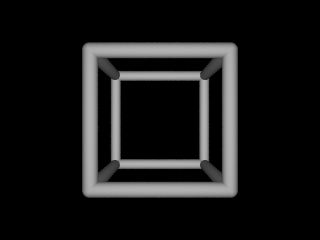

Cubo 4D
Due cubi wireframe collegati con 8 cilindri.
Bisogna aumentare di poco le dimensioni dei cubi per farli combaciare con i cilindri di collegamento.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 |
#include "shapes.inc" #include "colors.inc" object{ Wire_Box_Union(<-2.1,-2.1,-2.1>, <+2.1,+2.1,+2.1>, 0.1) pigment { color Cyan } } object{ Wire_Box_Union(<-1.1,-1.1,-1.1>, <+1.1,+1.1,+1.1>, 0.1) pigment { color Magenta } } cylinder{ <-2,-2,-2> <-1,-1,-1>, 0.1 pigment{ color Yellow } } cylinder{ <-2,-2,+2> <-1,-1,+1>, 0.1 pigment{ color Yellow } } cylinder{ <-2,+2,-2> <-1,+1,-1>, 0.1 pigment{ color Yellow } } cylinder{ <-2,+2,+2> <-1,+1,+1>, 0.1 pigment{ color Yellow } } cylinder{ <+2,-2,-2> <+1,-1,-1>, 0.1 pigment{ color Yellow } } cylinder{ <+2,-2,+2> <+1,-1,+1>, 0.1 pigment{ color Yellow } } cylinder{ <+2,+2,-2> <+1,+1,-1>, 0.1 pigment{ color Yellow } } cylinder{ <+2,+2,+2> <+1,+1,+1>, 0.1 pigment{ color Yellow } } light_source { <0,4,-6>, color White } camera { location<0,4,-6> look_at<0,0,0> } |
